Limb length and articular dimensions for six hominoid taxa

Gordonetal2020.Rd

Linear postcranial metric data from Gordon et al. (2020) collected for Sumatran orangutans, Bornean orangutans, western lowland gorillas, modern humans, common chimpanzees, Australopithecus afarensis, and A. africanus.

Usage

Gordonetal2020

Format

A data frame with 216 rows and 15 variables:

Taxon

factor Taxon name, with six possible levels : "Pongo", "Gorilla", "Homo", "Pan", "A. afarensis", and "A. africanus")

Species

factor Species name, with seven possible levels : "Pongo abelii", "Pongo pygmaeus", "Gorilla gorilla", "Homo sapiens", "Pan troglodytes", "A. afarensis", and "A. africanus")

Sex

factor Specimen sex, with three possible levels: "F", "M", and "U"

HUMHEAD

numeric Maximum anteroposterior (AP) diameter of the humeral head taken perpendicular to the shaft axis.

ELBOW0.5

numeric Square root of the product of capitular height and articular width of the distal humerus. Capitular height was taken from the anteroproximal border of capitulum to the distoposterior border along the midline. Articular width was taken across the anterior aspect of the articular surface from the lateral border of the capitulum to the medial edge of the articular surface.

RADTV

numeric Mediolateral (ML) diameter of the radial head.

FEMHEAD

numeric Maximum superoinferior (SI) diameter of the femoral head.

FEMSHAFT0.5

numeric Square root of the product of the AP and transverse diameters of the femoral shaft, taken just inferior to the lesser trochanter.

DISTFEM0.5

numeric Square root of the product of the biepicondylar and shaft AP diameters of the distal femur.

PROXTIB0.5

numeric Square root of the product of the AP and transverse diameters of the proximal tibia. The AP diameter was taken with one jaw of the calipers on the line connecting the posterior surfaces of the medial and lateral condyles and the other jaw on the most distant point on the medial condyle. Transverse diameter was the distance between the most lateral point on the lateral condyle to the most medial point on the medial condyle (perpendicular to the AP diameter).

DISTTIB0.5

numeric Square root of the product of the AP and transverse diameters of the distal tibia. The AP diameter is the distance between the most anterior and posterior points of the talar facet in the AP plane. Transverse diameter is the distance between the midline of the medial malleolus and the midline of the most medial point of the talar facet before the fibular facet begins.

Humerus.length

integer Humeral length measured to the nearest mm.

Radius.length

integer Radial length measured to the nearest mm.

Femur.length

integer Femoral length measured to the nearest mm.

Tibia.length

integer Tibial length measured to the nearest mm.

References

Gordon AD, et al. (2020) Limb proportions and positional behavior: revisiting the theoretical and empirical underpinnings for locomotor reconstruction in Australopithecus africanus. In Zipfel B, Richmond BG, and Ward CV, eds.: Hominid Postcranial Remains from Sterkfontein, South Africa, 1936-1995. Advances in Human Evolution Series. Oxford University Press. pp. 321-334. (Book Chapter) (Appendix III) (Appendix IV)

Examples

data(Gordonetal2020)

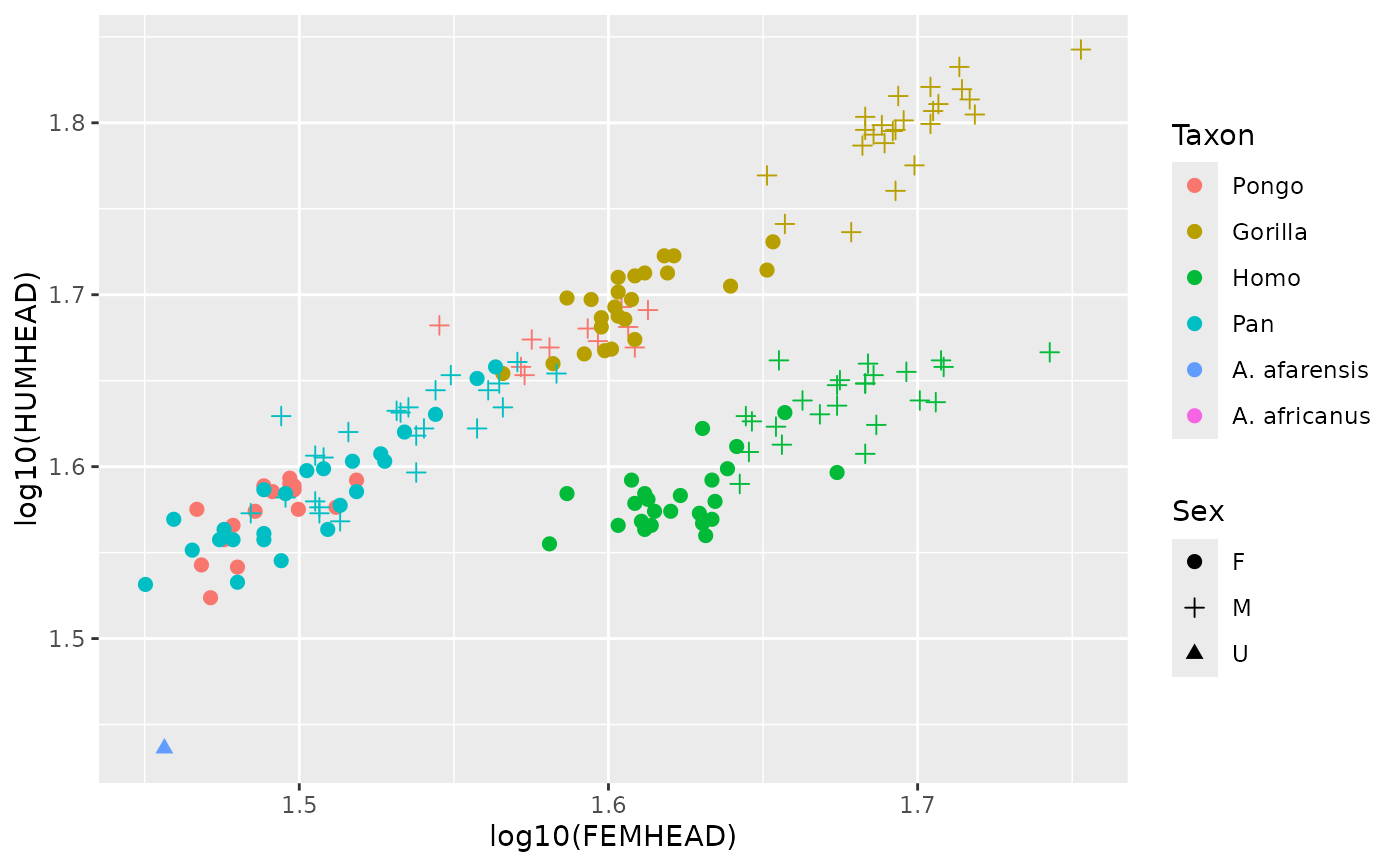

ggplot2::ggplot(Gordonetal2020, ggplot2::aes(x=log10(FEMHEAD), y=log10(HUMHEAD),
                                             color=Taxon, shape=Sex)) +
  ggplot2::geom_point(size=2) +
  ggplot2::scale_shape_manual(values = c(19,3, 17))
#> Warning: Removed 44 rows containing missing values or values outside the scale range
#> (`geom_point()`).

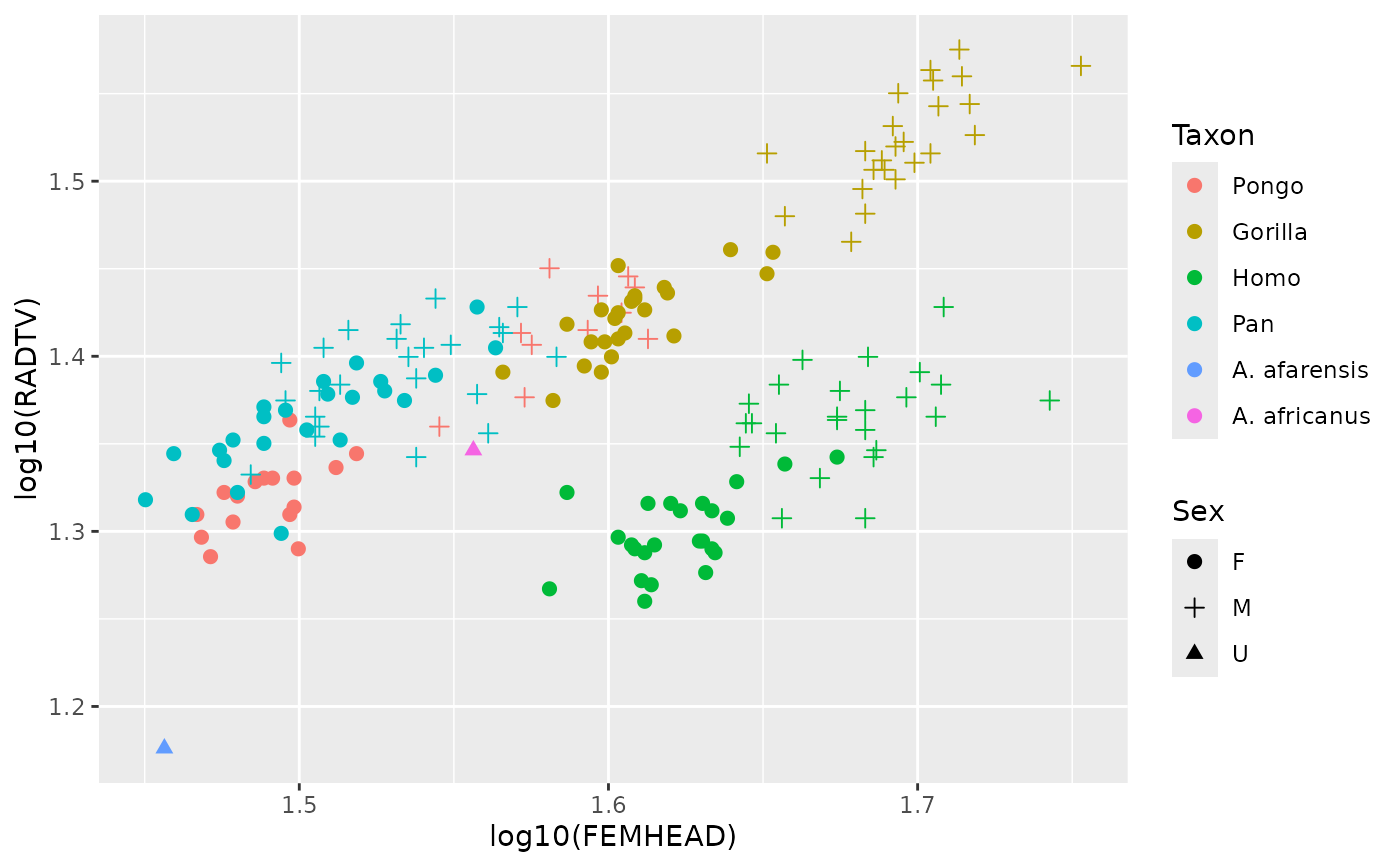

ggplot2::ggplot(Gordonetal2020, ggplot2::aes(x=log10(FEMHEAD), y=log10(RADTV),
                                             color=Taxon, shape=Sex)) +
  ggplot2::geom_point(size=2) +
  ggplot2::scale_shape_manual(values = c(19,3, 17))
#> Warning: Removed 43 rows containing missing values or values outside the scale range
#> (`geom_point()`).
